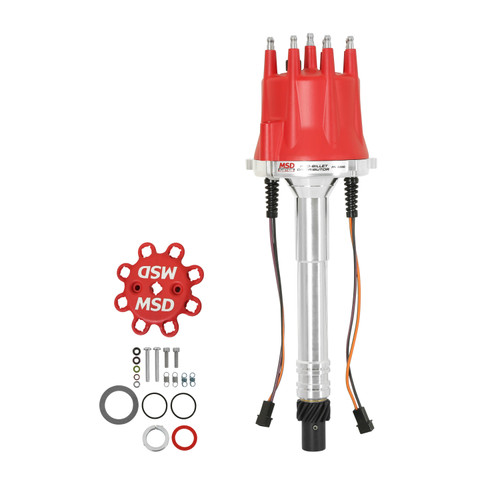

MSD Dual Pickup Chevy V8 Distributor BCCX 8356 ^

Call us today to order your MSD Dual Pickup Chevy V8 Distributor!

Part # 8356

• 0.500” steel shaft is QPQ coated and guided by a sealed ball bearing and an extra long sintered bushing
• Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
• Advance weight pins are staked and tig welded to the plate
• Adjustable slip collar mounting flange for engines with modified deck heights
• Easy-to-adjust mechanical advance with supplied springs and stop bushings
• Special oil tract improves lubrication to the distributor and cam gear
• Mechanical advance assembly can be locked out for crank trigger systems
• Dual magnetic pickups are placed 180° apart to provide a complete redundant ignition system for racing applications
• Must be used with an MSD 6, 7, or 8-Series Ignition
• CNC machined billet aluminum housing and billet aluminum base
• Nylon pads ensure smooth operation of the advance weights
• O-ring seals can be installed for oil pressure control (modified blocks only)

The Chevrolet housing has several racing features that racers will appreciate. At the base of the CNC machined housing there are two O-ring grooves. These seals prevent oil in the lifter gallery from leaking through the oil passage. If the engine deck, heads or intake have been modified, there is an adjustable slip collar which allows you to set the correct installation depth.

Vehicle information below is not a guaranty of fitment. If you have fitment concerns, please call prior to ordering.
