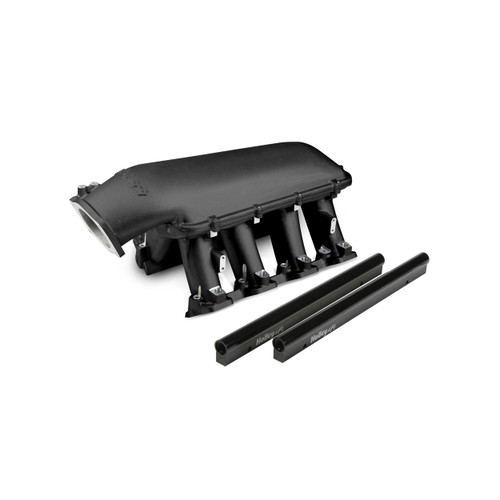

Call us today to order your Holley EFI Holley LS Hi-Ram EFI Manifold - Black GM LS1/LS2/LS6!
Part # 300-123BK
- Throttle Body Flange Location, with 102mm EFI Plenum Top : Height 8.42 (from engine block lifter valley cover flange), Longitudinal Location 3.84 (forward from engine block front flange), Angle 25 deg. (down from vertical)
- Total Height with 92/105mm EFI Plenum Top 12.32 to the lifter valley cover flange on engine block.
- Port Size 2.49 Height x 1.21 Wide
- Runner Length 6.58, As-Cast Runner Cross-Sectional Area Tapered 4.25 in² to 2.53 in²
- Plenum Top Gasket Type 3/32 Round O-ring Cord
- Base Plenum Top Mounting Flange Height 8.42 to the lifter valley cover flange on engine block.
- Mounting Flange Gasket Type Standard LS3 Molded O-Ring
The Holley GM LS1/LS2/LS6 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS1/LS2/LS6 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!
Vehicle information below is not a guaranty of fitment. If you have fitment concerns, please call prior to ordering.
1900
We are an authorized retailer for all Holley EFI products. The standard manufacturer warranty applies. If you ever have manufacturer warranty concerns or questions on products you purchased from us, we can help! We are a family owned and operated company that values all of our customers. We are here to assist with all future warranty concerns!
